Metal Film Resistor

A metal film resistor is a type of passive electronic component used in electrical circuits to control the flow of electric current. Resistors are designed to have a specific electrical resistance, measured in ohms (Ω), and they resist the flow of current in a circuit, limiting or regulating the amount of current that passes through them.

Metal film resistors are constructed using a thin film of metal alloy (typically nickel-chromium or nichrome) deposited onto a ceramic substrate. The metal film serves as the resistive element. This thin film technology allows for precise and stable resistance values with high accuracy.

Key features of metal film resistors include:

1. Stability: Metal film resistors offer excellent stability and low noise characteristics, making them suitable for precision and sensitive applications.

2. Tight Tolerance: Metal film resistors are available with tight tolerance values, ensuring that the actual resistance closely matches the specified resistance value.

3. Low Temperature Coefficient: Metal film resistors typically have a low temperature coefficient of resistance (TCR), meaning their resistance remains relatively stable over a wide range of temperatures.

4. Power Rating: Metal film resistors have various power ratings, indicating the maximum amount of power they can safely dissipate without overheating.

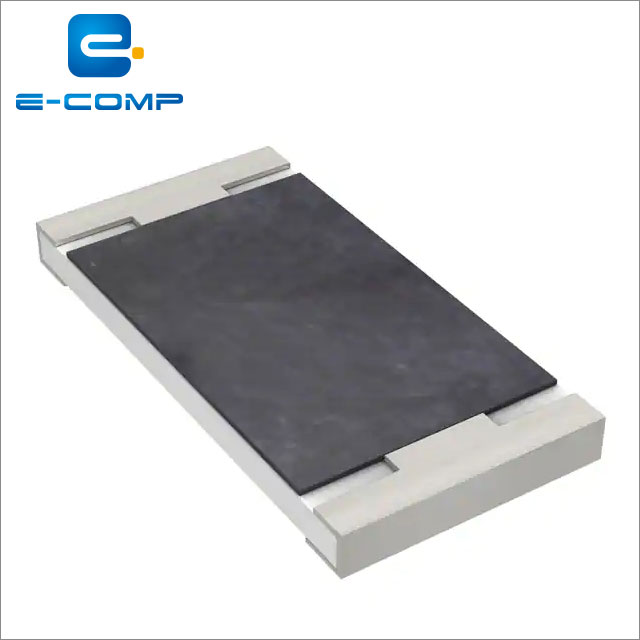

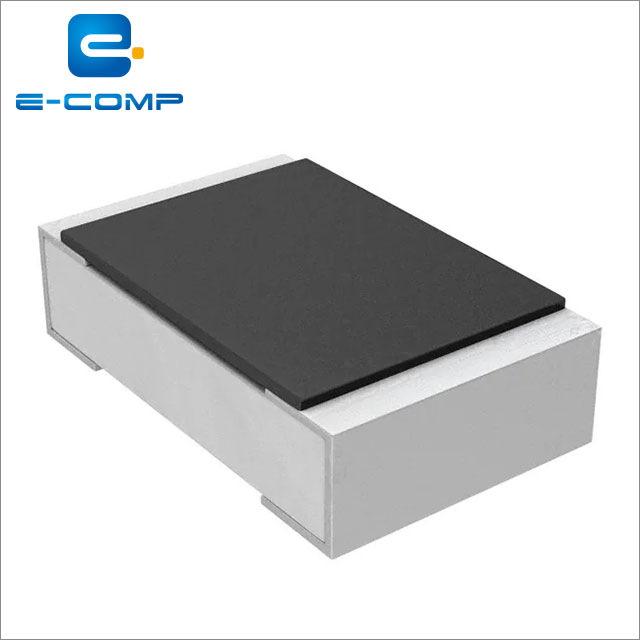

5. Package Types: Metal film resistors come in various package types, such as axial, surface-mount, and chip resistors, making them suitable for different circuit designs and mounting methods.

6. Application: Metal film resistors are commonly used in precision analog circuits, signal conditioning circuits, audio applications, measurement equipment, and other circuits where accuracy and stability are crucial.

As with other types of resistors, metal film resistors are available in various resistance values and power ratings to suit different circuit requirements. When choosing a metal film resistor for a specific application, it's essential to consider factors such as the required resistance value, power dissipation, tolerance, and temperature coefficient to ensure optimal circuit performance.
