Octagonal Ring Joint Gasket

An octagonal ring joint gasket is a type of sealing gasket used in high-pressure and high-temperature applications, particularly in the oil and gas industry. It is designed to provide a secure and reliable seal between two flange surfaces, such as those found in pipeline connections or pressure vessel joints.

Here are some key features and considerations related to octagonal ring joint gaskets:

1. Shape: As the name suggests, octagonal ring joint gaskets have an octagonal shape when viewed from above. This shape allows for precise alignment and sealing when compressed between two flange surfaces.

2. Material: Octagonal ring joint gaskets are typically made from metal materials with high mechanical strength and resistance to corrosion and extreme temperatures. Common materials used include soft iron, low-carbon steel, stainless steel, and various alloy steels.

3. Pressure and Temperature Resistance: Octagonal ring joint gaskets are specifically designed to handle high-pressure and high-temperature applications. They are capable of providing reliable sealing under extreme conditions, such as in oil and gas pipelines or wellheads.

4. Compatibility: The material selection of the gasket should be compatible with the flange materials to ensure proper sealing and prevent galvanic corrosion. It is essential to consider the media being sealed, as well as any corrosive substances or chemicals present.

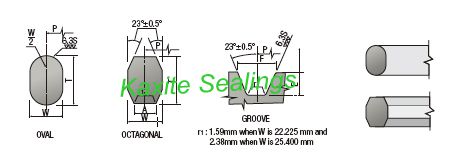

5. Ring Type: Octagonal ring joint gaskets come in different types based on their dimensions and application requirements. The most common types are R (oval), RX (flat-bottomed oval), and BX (flat-bottomed octagonal). These types have different cross-section profiles, which need to match the corresponding flange grooves for effective sealing.

6. Installation: Proper installation of octagonal ring joint gaskets is crucial for achieving an effective seal. The gasket must be correctly positioned and compressed using the recommended torque specifications to ensure proper sealing between the flanges.

7. Reusability: Octagonal ring joint gaskets can often be reused if they remain in good condition after disassembly. However, it is important to carefully inspect the gasket for damage or deformation before reuse to ensure reliable sealing performance.

Octagonal ring joint gaskets provide a robust sealing solution for high-pressure and high-temperature applications, particularly in the oil and gas industry. Proper gasket selection, installation, and maintenance are critical to ensuring a reliable and leak-free seal. It is advisable to follow industry standards and guidelines for gasket selection, including dimensions, material compatibility, and torque specifications, to achieve optimal sealing performance.
