Introduce the Diaphragm Pump in detail

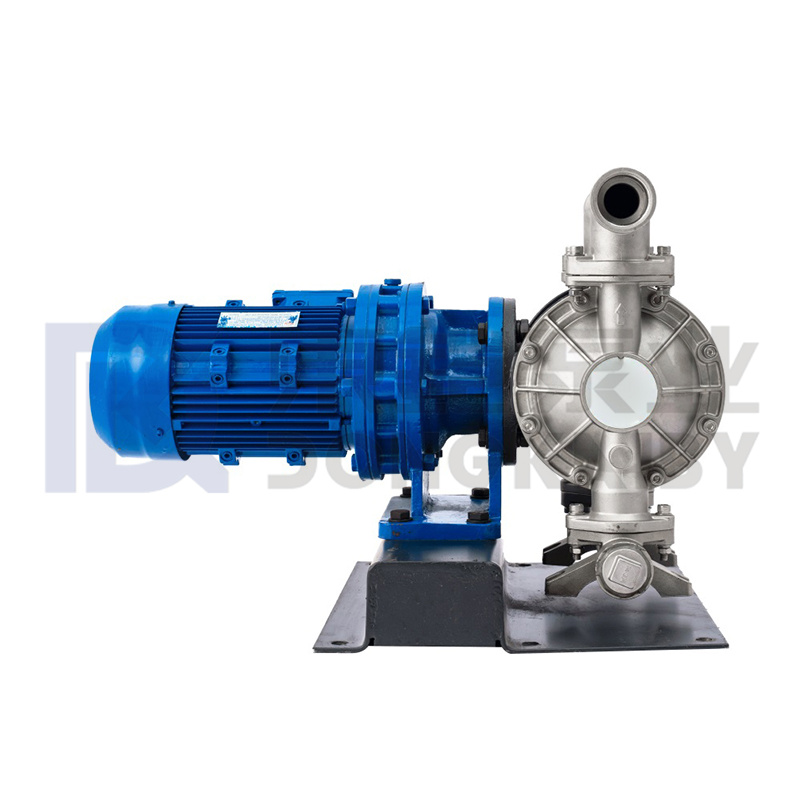

A diaphragm pump, also known as a membrane pump, is a type of positive displacement pump that utilizes a flexible diaphragm to pump fluids. It is widely used in various industries and applications due to its ability to handle a wide range of fluids, including corrosive and abrasive substances. Diaphragm pumps offer reliable and efficient pumping solutions with self-priming capabilities.

Here are the key details about diaphragm pumps:

Working Principle:

The working principle of a diaphragm pump involves the following steps:

1. Diaphragm Movement: A diaphragm pump consists of a flexible diaphragm, typically made of rubber or thermoplastic material, that divides the pump into two chambers. The diaphragm is connected to a reciprocating mechanism or an eccentric drive.

2. Suction Stroke: During the suction stroke, the diaphragm moves away from the pumping chamber, creating a vacuum that draws fluid into the chamber through an inlet check valve. This allows the pump to self-prime and handle fluids with high viscosity or low vapor pressure.

3. Discharge Stroke: During the discharge stroke, the diaphragm moves towards the pumping chamber, pressurizing the fluid and forcing it out through a discharge check valve. The reciprocating action of the diaphragm creates pulsating flow.

4. Check Valves: Check valves, usually one-way valves, ensure the unidirectional flow of fluid through the pump. They prevent backflow and maintain the desired flow direction.

Advantages of Diaphragm Pumps:

1. Versatility: Diaphragm pumps are highly versatile and can handle a wide range of fluids, including corrosive, abrasive, and viscous substances. They are suitable for applications where other types of pumps may be limited.

2. Self-Priming: Diaphragm pumps have excellent self-priming capabilities, allowing them to start and operate efficiently even when the pump is not initially filled with fluid. This makes them ideal for applications where the pump may be located above the fluid source.

3. Dry Run Capability: Diaphragm pumps can tolerate dry running without damage to the pump or diaphragm. This provides protection against pump failure in case of temporary fluid shortage or interruption.

4. Solids Handling: Diaphragm pumps can handle fluids containing solids or particulate matter, thanks to their ability to pass solids without clogging or damaging the pump.

5. Adjustable Flow and Pressure: Diaphragm pumps allow for adjustable flow rates and pressures by controlling the stroke length, speed, or pressure on the diaphragm. This provides flexibility to meet specific application requirements.

6. Reliable and Safe: Diaphragm pumps are known for their reliability and durability. They are designed to provide long service life and require minimal maintenance. Additionally, they can handle potentially hazardous or toxic fluids safely, as the fluid remains isolated from the reciprocating mechanism.

Applications:

Diaphragm pumps find applications in various industries and processes, including:

1. Chemical and Petrochemical: They are used for transferring and dosing chemicals, acids, solvents, and corrosive substances in chemical processing plants.

2. Water Treatment: Diaphragm pumps are employed in water treatment facilities for dosing chemicals, disinfection, filtration, and wastewater treatment.

3. Oil and Gas: They are used for wellhead control, chemical injection, and metering applications in the oil and gas industry.

4. Food and Beverage: Diaphragm pumps are used in food processing and beverage production for handling fluids like juices, sauces, syrups, and dairy products.

5. Pharmaceuticals: They are used in pharmaceutical manufacturing for dosing and transferring liquids, including drugs, solutions, and suspensions.

6. Agriculture and Spraying: Diaphragm pumps are used in agricultural spraying equipment for cropprotection, pesticide application, and irrigation.

In summary, a diaphragm pump is a versatile positive displacement pump that utilizes a flexible diaphragm to pump fluids. It offers self-priming capabilities, can handle a wide range of fluids including corrosive and abrasive substances, and provides adjustable flow rates and pressures. Diaphragm pumps find applications in industries such as chemical, water treatment, oil and gas, food and beverage, pharmaceuticals, and agriculture.
