Exploring the TC-RK3566 SOM: A Powerful Solution for Embedded Systems

Introduction

In the rapidly evolving world of embedded systems, the need for powerful, efficient, and versatile System on Modules (SOMs) has never been greater. The TC-RK3566 SOM stands out as a formidable contender, offering a range of features that cater to various applications. In this blog, we will explore the key characteristics, benefits, and potential applications of the TC-RK3566 SOM, highlighting why it is an excellent choice for modern embedded solutions.

What is the TC-RK3566 SOM?

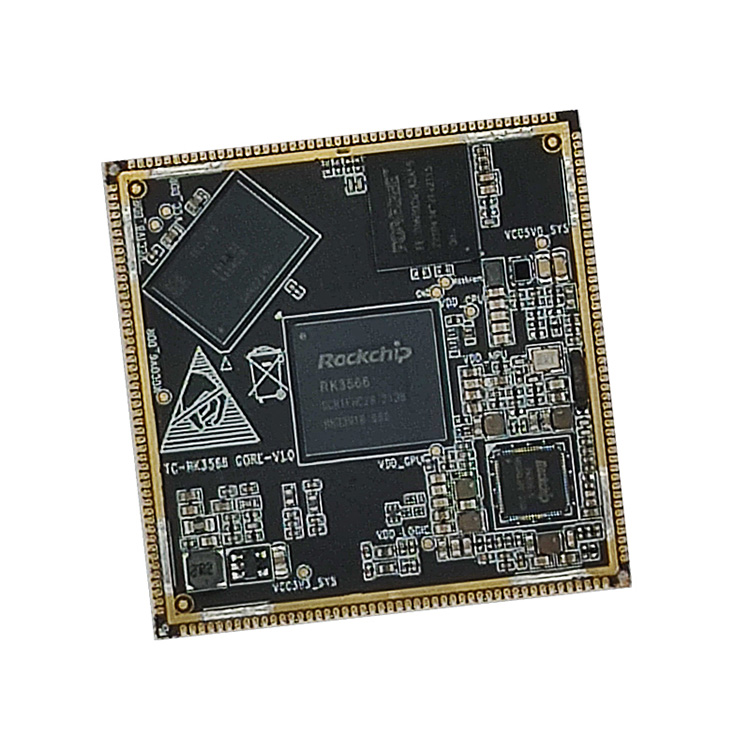

The TC-RK3566 SOM is a compact, high-performance System on Module based on the Rockchip RK3566 processor. It integrates essential components such as the CPU, memory, storage, and interfaces into a single module, simplifying the design and development process for embedded systems.

Key Features of the TC-RK3566 SOM

1. Powerful Processor

At the heart of the TC-RK3566 SOM is the Rockchip RK3566 processor. This quad-core ARM Cortex-A55 CPU provides excellent processing power and energy efficiency, making it suitable for a wide range of applications.

2. Integrated GPU

The module features an integrated ARM Mali-G52 GPU, offering robust graphics performance for applications requiring high-quality visuals, such as digital signage, media players, and HMI (Human-Machine Interface) systems.

3. Versatile Connectivity Options

The TC-RK3566 SOM supports a variety of connectivity options, including HDMI, USB 3.0, Ethernet, and PCIe. This versatility ensures that the module can interface with numerous peripherals and devices, expanding its applicability.

4. Expandable Storage

With support for eMMC and SD card storage, the TC-RK3566 SOM provides flexible storage solutions. This is particularly beneficial for applications that require large data storage or quick access to data.

5. Advanced Multimedia Capabilities

The module supports 4K video decoding and encoding, making it ideal for multimedia applications. Its advanced audio and video processing capabilities ensure smooth and high-quality media playback.

6. Compact and Robust Design

Designed to be compact and robust, the TC-RK3566 SOM can withstand harsh operating conditions, making it suitable for industrial applications. Its small form factor also allows for easy integration into space-constrained environments.

Benefits of Using the TC-RK3566 SOM

1. Simplified Development

By integrating essential components into a single module, the TC-RK3566 SOM simplifies the development process. This reduces the complexity of hardware design and accelerates time-to-market for new products.

2. Enhanced Performance

The combination of a powerful CPU and GPU ensures that the TC-RK3566 SOM delivers high performance, even for demanding applications. This makes it a reliable choice for applications requiring substantial processing power and graphics capabilities.

3. Cost-Effective Solution

By consolidating multiple functions into a single module, the TC-RK3566 SOM reduces the overall cost of the system. This makes it a cost-effective solution for developing advanced embedded systems without compromising on performance.

4. Flexibility and Scalability

The wide range of connectivity options and expandable storage solutions provide flexibility in system design. The module’s scalability ensures that it can adapt to the evolving needs of different applications.

Applications of the TC-RK3566 SOM

1. Industrial Automation

In industrial automation, the TC-RK3566 SOM can be used for controlling machinery, monitoring systems, and managing industrial processes. Its robust design and high performance ensure reliable operation in demanding environments.

2. Digital Signage

The module’s advanced multimedia capabilities and 4K video support make it ideal for digital signage applications. It can drive high-resolution displays, providing vivid and engaging visual content for advertising and information dissemination.

3. Smart Home Devices

For smart home devices, the TC-RK3566 SOM offers the processing power and connectivity needed to manage smart appliances, security systems, and home automation hubs. Its compact size allows for seamless integration into various smart home products.

4. Healthcare Devices

In healthcare, the TC-RK3566 SOM can be used in medical devices for patient monitoring, diagnostic equipment, and telemedicine solutions. Its reliability and performance ensure accurate and efficient operation in critical applications.

5. Embedded Media Players

The TC-RK3566 SOM’s robust multimedia capabilities make it an excellent choice for embedded media players. It can handle high-quality audio and video playback, making it suitable for use in entertainment systems, kiosks, and information displays.

Conclusion

The TC-RK3566 SOM is a powerful and versatile solution for a wide range of embedded applications. Its combination of processing power, advanced graphics capabilities, and versatile connectivity options makes it an ideal choice for developers looking to create high-performance, cost-effective embedded systems. Whether in industrial automation, digital signage, smart home devices, healthcare, or multimedia applications, the TC-RK3566 SOM provides the reliability and performance needed to meet the demands of modern technology.
