A conical twin screw barrel, also known as a conical twin screw extruder barrel, is a component used in plastic extrusion processes. It is specifically designed for conical twin screw extruders, which are widely used in the plastics industry for the production of various plastic products.
The conical twin screw barrel consists of two parallel screws that are closely intermeshed within a cylindrical barrel. These screws rotate in opposite directions, allowing for efficient mixing, melting, and conveying of the plastic material being processed.
Here are some key features and functions of a conical twin screw barrel:
1. Construction: The conical twin screw barrel is typically made of high-quality, wear-resistant alloy steel. It is precision-machined to ensure smooth operation and optimal performance.

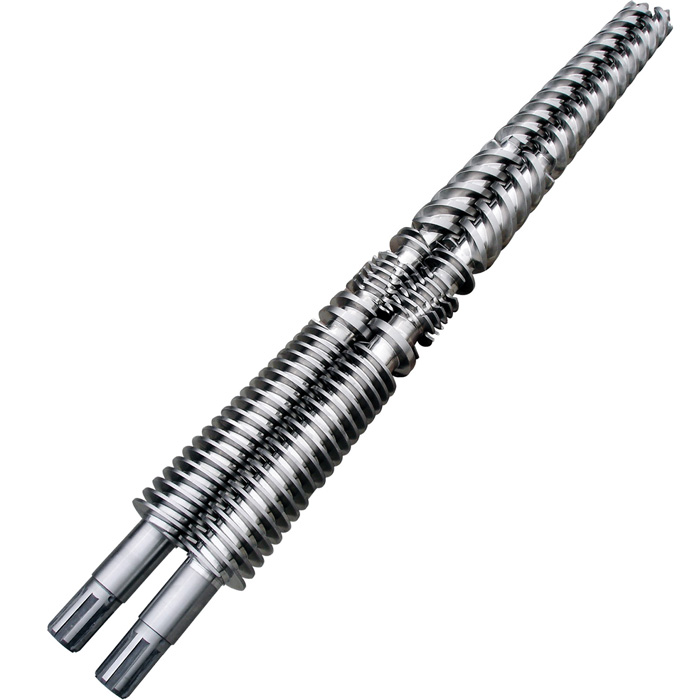

2. Screw Design: The screws in a conical twin screw barrel have a unique conical shape. They consist of different sections, including feed, compression, and metering zones, each serving a specific purpose in the plastic extrusion process.
3. Material Mixing: As the plastic material enters the conical twin screw barrel, the intermeshing screws create a shearing and kneading action. This action helps to homogenize and blend the plastic material, ensuring consistent mixing and distribution of additives, fillers, or colorants.
4. Melting and Plasticization: The rotation of the screws generates heat through friction, causing the plastic material to melt and reach the desired processing temperature. The conical design of the screw elements aids in conveying and compacting the molten material, increasing the melting efficiency.
5. Pressure Generation: The narrowing diameter of the barrel in the conical twin screw barrel design creates a compression effect on the plastic material. This compression helps to generate the necessary pressure required for further plasticization and extrusion of the molten material.
6. Output Control: By adjusting the screw speed, barrel temperature, and other processing parameters, the conical twin screw barrel allows for control over the output rate and plasticizing capacity of the extruder.
Conical twin screw extruders with their corresponding barrels are commonly used in a range of plastic processing applications, including profile extrusion, pipe extrusion, sheet extrusion, and compounding. They offer advantages such as high processing efficiency, excellent mixing capability, good self-cleaning properties, and versatility in handling different types of plastic materials.
It's worth noting that the design and specifications of conical twin screw barrels may vary depending on the specific manufacturer and application requirements. Therefore, it's essential to consult the equipment manufacturer's guidelines and recommendations for proper installation, operation, and maintenance of the conical twin screw barrel within the extrusion system.
