How Conveyor Belts work in machinery

Conveyor belts are mechanical systems used in machinery to transport materials or products from one place to another efficiently and with minimal manual effort. Here's a breakdown of how they work:

1. Basic Components

A conveyor belt system typically includes:

Belt: A continuous loop made from rubber, PVC, fabric, or metal, depending on the application.

Pulleys (Rollers): Usually two pulleys—one drive pulley (powered) and one idler pulley (non-powered) guide and support the belt.

Motor: Powers the drive pulley to move the belt.

Frame: A structure that supports the belt and pulleys.

2. Operating Principle

The motor turns the drive pulley, which pulls the belt along.

The belt moves over the idler pulley and possibly over other rollers, creating a loop.

Items placed on the belt move along with it, driven by friction between the belt and the object.

3. Types of Conveyor Belts in Machinery

Flat Belt Conveyors: Common for moving lightweight materials in factories.

Roller Conveyors: Use rollers instead of a flat belt; ideal for heavy or irregular items.

Modular Belt Conveyors: Made of interlocking plastic pieces; used in food or packaging industries.

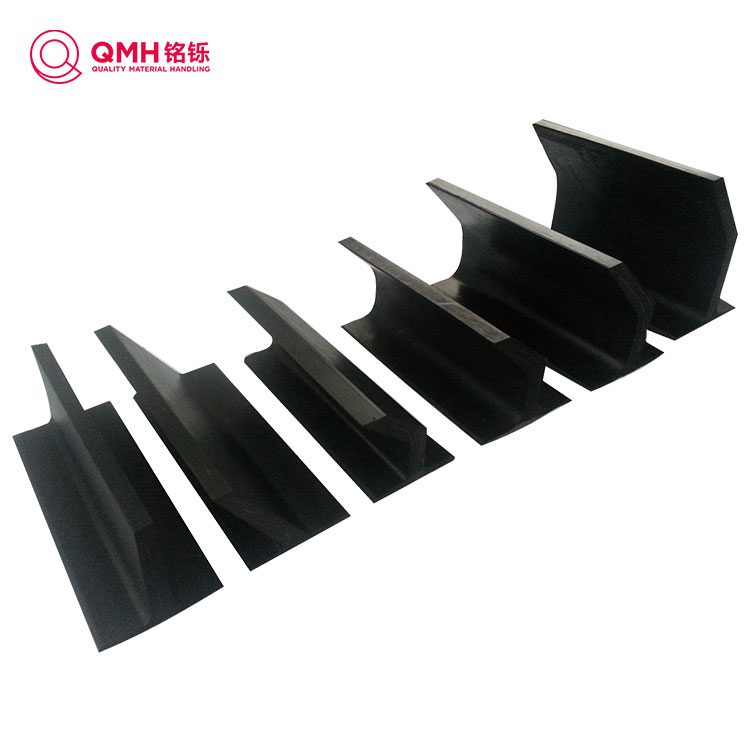

Cleated Belt Conveyors: Feature vertical cleats to move materials at an incline without slippage.

4. Applications

Manufacturing lines: For assembling parts.

Packaging: Transporting goods through various stages.

Mining: Moving raw materials like coal or ore.

Airports: Baggage handling systems.
