Understanding the Essential Role of a Type D Flange Insulation Gasket

2024-06-18

In the intricate world of industrial piping systems, components play a crucial role in ensuring the safety, efficiency, and longevity of the entire system. Among these components, the Type D Flange Insulation Gasket stands out as a vital piece of equipment that fulfills a unique and essential function.

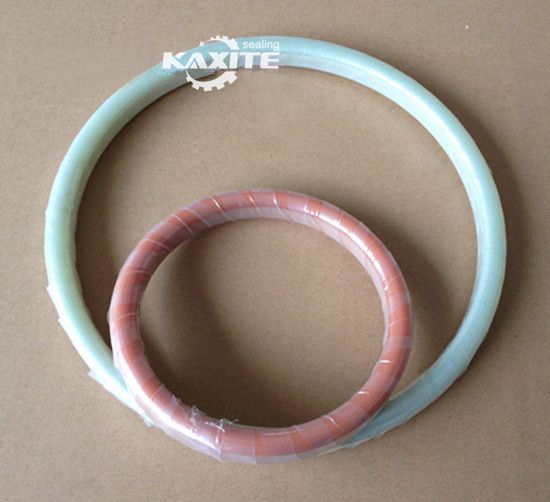

What is a Type D Flange Insulation Gasket?

To begin, let's define what a Type D Flange Insulation Gasket is. This type of gasket is specifically designed to fit the ring grooves on ring type joint (RTJ) flanges in industrial piping systems. It is a critical component that sits between the mating surfaces of the flanges, providing a seal and insulation.


The Primary Function of a Type D Flange Insulation Gasket

The primary function of a Type D Flange Insulation Gasket is to provide both effective sealing and reliable electrical insulation of the flanges. In piping systems, flanges are used to connect pipes, valves, and other equipment. The gaskets sit between these flanges, creating a tight seal that prevents leakage.


Moreover, the insulation provided by the gasket is crucial in preventing corrosion and ensuring the overall integrity of the piping system. By eliminating metal-to-metal contact between the flanges, the gasket helps protect the system from galvanic corrosion, a process that can damage the equipment and compromise the safety of the system.


In addition to its sealing and insulation properties, the Type D Flange Insulation Gasket also aids in cathodic protection. Cathodic protection is a technique used to prevent corrosion by making the metal in the piping system the cathode of an electrochemical cell. The gasket helps facilitate this process, further enhancing the corrosion resistance of the system.


Importance of Proper Selection and Installation

The effectiveness of a Type D Flange Insulation Gasket depends on its proper selection and installation. It is crucial to choose a gasket that is compatible with the specific materials and operating conditions of the piping system. The gasket must also be installed correctly, with precise alignment and compression, to ensure a tight seal and optimal performance.


In conclusion, the Type D Flange Insulation Gasket plays a vital role in the safety, efficiency, and reliability of industrial piping systems. Its ability to provide both sealing and insulation makes it an essential component that should not be overlooked. By understanding its function and ensuring its proper selection and installation, we can help ensure the smooth operation of our piping systems and protect them from potential damage and corrosion.
