Unveiling the Mechanics: How Hydraulic Presses Revolutionize SMC Forming

2024-02-27

Introduction:

In the realm of manufacturing, Sheet Molding Compound (SMC) has emerged as a versatile material for producing complex and high-quality components. At the heart of SMC forming lies the hydraulic press, a powerful machine that utilizes hydraulic pressure to shape and mold SMC into desired configurations. In this blog, we'll delve into the workings of hydraulic presses in the context of SMC forming, exploring the intricate mechanics that drive this transformative process.

Understanding Hydraulic Presses:

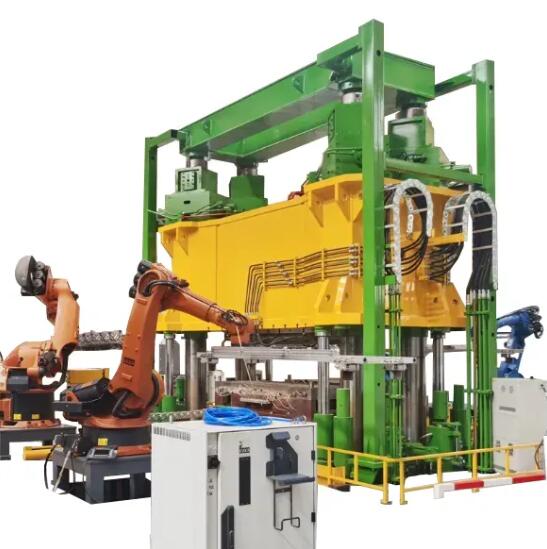

A hydraulic press is a machine that harnesses the power of hydraulic fluid to generate immense force and apply it to a workpiece. In the context of SMC forming, hydraulic presses are used to shape and mold SMC sheets into intricate parts and components with precision and efficiency.

1. Hydraulic System:

At the core of a hydraulic press is its hydraulic system, consisting of a hydraulic pump, hydraulic fluid reservoir, valves, cylinders, and pistons. When activated, the hydraulic pump pressurizes the hydraulic fluid, which is then directed to the cylinders through control valves. The pressure exerted by the fluid acts upon the pistons in the cylinders, generating force that is transmitted to the pressing surface or tooling.

2. Pressing Surface and Tooling:

The pressing surface of a hydraulic press, often referred to as the platen or die, is where the SMC sheet is placed for forming. Depending on the desired shape and configuration of the final part, specialized tooling, such as molds, dies, or punches, may be attached to the pressing surface. These tooling elements define the contours and features of the formed SMC part.

3. Forming Process:

To begin the forming process, a pre-cut SMC sheet is positioned on the pressing surface of the hydraulic press. The hydraulic system is then activated, causing the pistons in the cylinders to extend and exert force on the SMC sheet through the tooling. As the pressure increases, the SMC material undergoes plastic deformation, conforming to the shape of the mold or die.

4. Pressure Control and Monitoring:

Hydraulic presses for SMC forming are equipped with advanced control systems that enable precise pressure control and monitoring throughout the forming process. Pressure sensors and feedback mechanisms provide real-time data on hydraulic pressure, allowing operators to adjust parameters as needed to achieve optimal forming conditions. This level of control ensures consistency and accuracy in the formed SMC parts.

5. Cooling and Release:

Once the desired shape has been achieved, the hydraulic pressure is released, and the formed SMC part is allowed to cool and cure. Depending on the specific requirements of the SMC material, cooling may be accelerated using additional cooling systems or methods. Once cooled, the formed part is removed from the press and subjected to further finishing processes as necessary.

Conclusion:

Hydraulic presses play a pivotal role in the SMC forming process, enabling manufacturers to produce complex and high-quality components with efficiency and precision. By harnessing the power of hydraulic fluid, these machines exert immense force to shape and mold SMC sheets into desired configurations. With advanced control systems and precise pressure monitoring, hydraulic presses ensure consistency and accuracy in the formed SMC parts, driving innovation and excellence in manufacturing.
